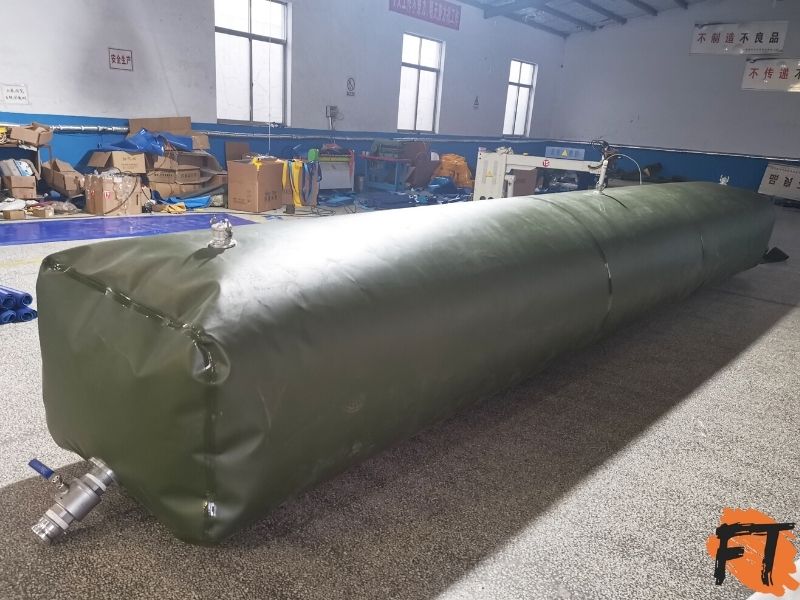

- Flexible Marine Bladder (Pillow Tank): Designed for both short- and long-term storage and transportation of water or fuel on boats and marine projects. Quick and simple to use—just unfold, fill, and you’re good to go.
- Versatile Storage: Ideal for holding drinking water, gray water, or fuels like diesel and gasoline, whether on marine projects or onboard vessels.
- Durable and Lightweight: Made from heavy-duty, reinforced materials for enhanced flexibility, reduced weight, and increased strength. For instance, a 10m³ tank folds into just 0.25m³ for compact packing.
- Safety First: Every marine bladder undergoes rigorous air pressure testing before shipment to ensure maximum reliability and safety.
BOAT/MARINE BLADDER
WATER/ FUEL BLADDER TANK ON BOAT OR MARINE
Request a quote
WHY USE PILLOW BOAT BLADDER
When we say, a container is for drinking water storage; it must be food grade. Flixtank potable water storage tank meets the FDA. For fuel(diesel, petrol, Jetfuel, etc), the TPU material is compatible to the fuel. And all the production process obeys the GJB4219A, 2013, military standard.
Comparing with the rigid tank(like steel tank or poly tank), the potable bladder bag is a better way for storage and transportation:
- size 25gal to 250,000gal（100L to 1,000,000L), custom available.
- highly resistant to puncture and UV resistant.
- economical: less half than steel tank.
- no limited on space, the shape can fit any space.
- no height when empty, low profile when filled.
- can be folded, when empty.
- can be packed in small package.
- less weight, easy shipping.
As we’re factory, custom services provided, we can do the specific bladder tanks based on your requirements, contact us.
MULTI-LIQUID MARINE BLADDER TANK
Flixble Bladder Tanks(Pillow Tanks) use as various liquid storage containment: water storage, including the potable DRINKING WATER; as we have other types of materials for different usages: chemical storage, like wastewater treatment; fuel storage, military standard. Then pillow tanks widely use in Residential, Industrial, Agriculture for Liquid Storage.
Different working places, differnt requirements, we can do the custom bladders. FOR WATER STORAGE; FOR FUEL STORAGE.
FEATURES OF PILLOW TANK
- Low Profile: When empty, the tank lies flat with no height; even when filled, its low profile makes it easy to manage.
- Compact Storage: Folds into a small package for convenient storage when not in use.
- Quick Installation: Can be set up by just one or two people with minimal effort.
- Cost-Effective: More affordable than stainless steel tanks, offering significant savings.
- Versatile Usage: Suitable for almost any site or environment without limitations.
- Reduced Shipping Costs: Packs neatly into a small carton for cost-efficient transportation.
- High Capacity Loading: A 20GP container can hold multiple tanks, maximizing space efficiency.
- Simple Maintenance: Designed for straightforward use, allowing fluid to flow seamlessly from inlet to outlet.
- Custom Options: Fully customizable, even for a single tank. Tailor size, shape, material, dimensions, and fittings to your specific needs.
Standard Sizes of Boat Bladder Tank
Size ranges from 50gal(150L) to 260,000gal(1,000,000L), besides standard sizes. The flexible boat water/fuel can be customized.
| CAPACITY | APPROXIMATE DIMENSIONS | THICKNESS OF MATERIAL | NOM.WT | NOM.CUBE | |||||
| GAL. | LITERS | FEET | METERS | INCH | MM | LBS. | KGS. | FT3 | M3 |
| 250 | 1000 | 9.1*4.4 | 2.8*1.35 | 0.027 | 0.7 | 22 | 10 | 2.1 | 0.06 |
| 500 | 2000 | 9.1*6 | 2.8*1.85 | 0.027 | 0.7 | 30.8 | 14 | 2.8 | 0.08 |
| 750 | 3000 | 10.8*7.7 | 3.3*2.35 | 0.027 | 0.7 | 41.8 | 19 | 3.5 | 0.1 |
| 1250 | 5000 | 14.7*9.3 | 4.5*2.85 | 0.027 | 0.7 | 61.7 | 28 | 6.3 | 0.18 |
| 2,500 | 10,000 | 16.4*12.6 | 5*3.85 | 0.035 | 0.7 | 110.2 | 50 | 8.8 | 0.25 |
| 5,000 | 20,000 | 19.6*15.9 | 6*4.85 | 0.035 | 0.9 | 165.3 | 75 | 10.5 | 0.3 |
| 7,500 | 30,000 | 26.2*19.1 | 8*5.85 | 0.035 | 0.9 | 297.6 | 135 | 21.1 | 0.6 |
| 10,000 | 40,000 | 29.5*22.4 | 9*6.85 | 0.035 | 0.9 | 370.3 | 168 | 22.2 | 0.63 |
| 12,500 | 50,000 | 32.8*25.7 | 10*7.85 | 0.035 | 0.9 | 462.9 | 210 | 24.7 | 0.7 |
| 15,000 | 60,000 | 34.3*28.8 | 10.5*8.8 | 0.035 | 0.9 | 529.1 | 240 | 28.2 | 0.8 |
| 25,000 | 100,000 | 37.7*32.3 | 11.5*9.85 | 0.035 | 0.9 | 639.3 | 290 | 52.9 | 1.5 |
| 50,000 | 200,000 | 54.1*41.6 | 16.5*12.7 | 0.035 | 0.9 | 1587.3 | 720 | 70.6 | 2 |
- more sizes can be customized, according to the requirements, contact us to custom.
Fabric Materials Choice
Bladder Tanks use in various places, for different purpose, the fabric materials will be different. For most usage, the non-drinking water storage, the regualr material PVC is a good choice; but for drinking water, the mateial should be food-grade, we use the TPU which meets the FDA to provide safe sources.
Please check the common usage of materials below:
| FABRIC MATERIAL |
THICKNESS | COMMON USAGE |
| UNIT: MM | ||
| PVC | 0.7-0.9-1.0-1.2-1.5-2.0 | Non-Drinking Water Storage, Chemical Liquid Storage |
| POLYESTER TPU | 0.7-0.9-1.0-1.2-1.5-2.0 | Fuel, Gasoline, Petrol, Jet Fuel, Lube Oil Storage, Transportation |
| POLYETHER TPU | 0.7-0.9-1.0-1.2-1.5-2.0 | Potable Water Storage Supply |
| 6P FREE PVC | 0.7-0.9-1.0-1.2-1.5-2.0 | Aquaculture Tanks, Fish Breeding Tanks, Shrimp Farming Ponds |
Specification
The common specification of our fabric mateials, including PVC and TPU.
- -40~90 Degrees Working Temperature
- UV-Resistance
- 10 Years Contact Time

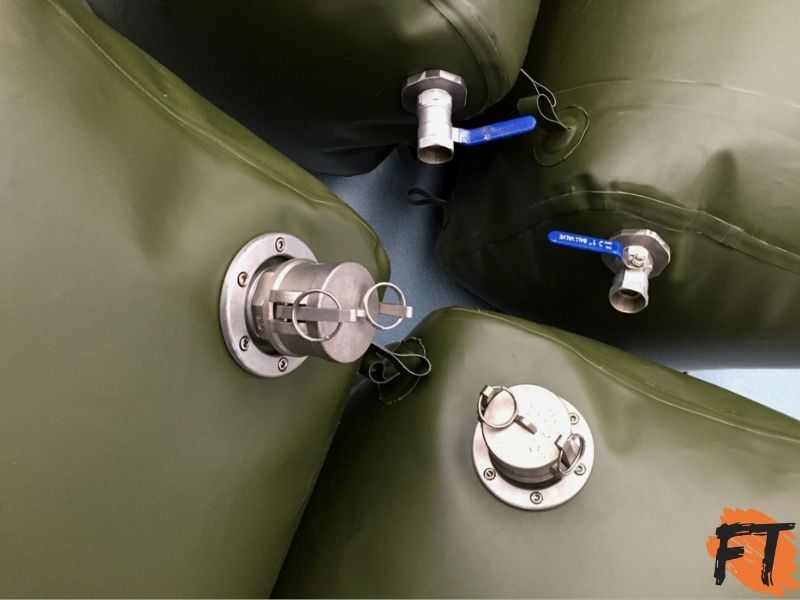

Standard Fittings
Flixtank provides tanks for water(including drinking), fuel, chemical storage in residential, industrial, agricultural sites.
For most applications, the standard fittings are enough: M flange, Camlock, Ball Valve, A/F Fitting, Spare Kits.
In order to connect to the pipe directly, we also recommend the add a C Fitting(extra pay).
And other accessries(pay extra): Ground Sheet; Sun-shed Cover; Spill Berm(Liner)
Size of Fittings
Common sizes: 3/4inch, 1/2inch, 1inch, 1-1/2inch, 2inch, 3inch, 4inch, 6inch.
other sizes can be customized.
Materials of Fittings
For most water storage tanks, we use the fittings of UPVC(for water), Stainless Steel(for fuel), Aluminum(for fuel), brass(for fuel).
Custom Fittings
Type, Sizes, Materials can be customized according to the requirements.
Accessories
In different applications, some accessories may need, we can supply some accessories for usages below, more requirements, please discuss with us.
Aquaculture may also need: water pump, oxygen pump, filtering system, UV light.
Water supply may also need: water pump, hose.
Rainwater may also need: filter net, water pump, leaf eater.
