Frac Tank uses for water or liquid Storage or Transportation, as mostly for hydraulic fracturing, then also called fracking tank, pumps water at high pressure into the wells.

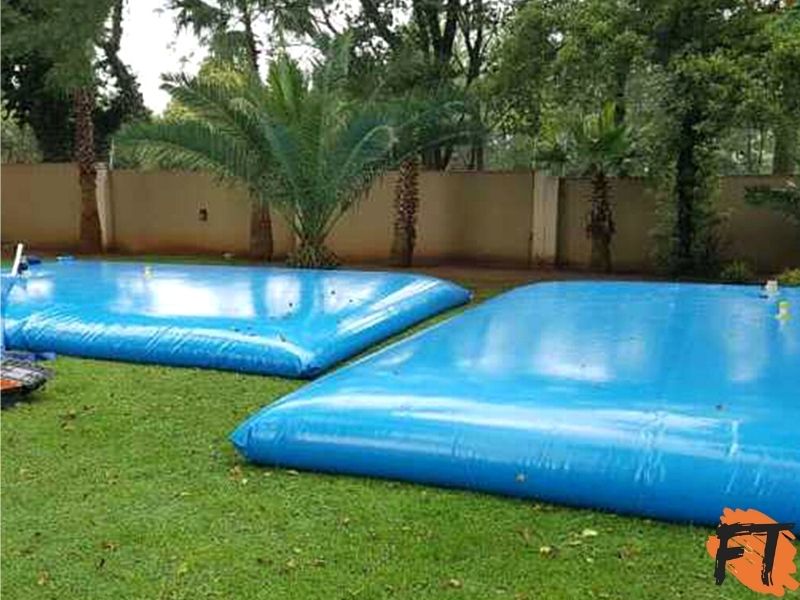

Flexible Frac Tank(Pillow Tank/ Frame Pool) can be quickily assembled. Easy to Use: Unfold, Filling, Done.
Collapsible Frac Tank, using Heavy Duty sheet, more flexibility, lighter, stronger; eg: 10m3 tank only 0.25m3 packing.
Each Water Tank go through air pressure tested before shipment, Safe, Reliable are our purpose.
Frac Tank is a large, movable, liquid storage tank. Because fracking tank mosly uses in industrial and construction site for hydraulic fracturing, then also call fracking tank.
Liquid storage, not only water for fracking process, the tank can also be used for chemical, fuel storage and transfer.
The large frac tank uses to store large amount of water, brine, chemical, fuel, oil, etc. It has many applications included, but not limited to:
Agriculture: aquaculture water sources, irrigation water supply, animal drinking water storage, etc.
Industrial: wastewater storage/transfer, water treatment containment, fracking of oil/gas well, etc.
Rresidential: gray water storage, septic problem solution, firefighting water storage, ect.
For common liquid storage/transfer, then the frac tank is only a containment to keep the liquid in a safe condition.
For hydraulic fracturing working process:
When we say the flexible frac tank is better than steel tank, we really mean it.
Low Profile: there is no height when it’s empty, low height when filled; can be controlled easily.
Small Package: can be packed in a small package when it’s empty.
Fast Setup: easy installation by few people(even 1).
Economical: over half to the stainless steel tank.
No Limit: almost no limited on the working site.
Lower Shipping Cost: can be packed in a small carton for shipment.
Load More: a 20GP container can load bulk tanks.
Easy Mainteinance: flow from “in” to “out”.
Custom: provide custom services even for 1 tank, including the mateiral, dimension, fittings.
Common sizes of pillow frac tank, 2500gal(10,000L) to 2,500,000gal(1,000,000L).
| CAPACITY | APPROXIMATE DIMENSIONS | THICKNESS OF MATERIAL | NOM.WT | NOM.CUBE | |||||
| GAL. | LITERS | FEET | METERS | INCH | MM | LBS. | KGS. | FT3 | M3 |
| 2,500 | 10,000 | 16.4*12.6 | 5*3.85 | 0.035 | 0.7 | 110.2 | 50 | 8.8 | 0.25 |
| 5,000 | 20,000 | 19.6*15.9 | 6*4.85 | 0.035 | 0.9 | 165.3 | 75 | 10.5 | 0.3 |
| 7,500 | 30,000 | 26.2*19.1 | 8*5.85 | 0.035 | 0.9 | 297.6 | 135 | 21.1 | 0.6 |
| 10,000 | 40,000 | 29.5*22.4 | 9*6.85 | 0.035 | 0.9 | 370.3 | 168 | 22.2 | 0.63 |
| 12,500 | 50,000 | 32.8*25.7 | 10*7.85 | 0.035 | 0.9 | 462.9 | 210 | 24.7 | 0.7 |
| 15,000 | 60,000 | 34.3*28.8 | 10.5*8.8 | 0.035 | 0.9 | 529.1 | 240 | 28.2 | 0.8 |
| 25,000 | 100,000 | 37.7*32.3 | 11.5*9.85 | 0.035 | 0.9 | 639.3 | 290 | 52.9 | 1.5 |
| 50,000 | 200,000 | 54.1*41.6 | 16.5*12.7 | 0.035 | 0.9 | 1587.3 | 720 | 70.6 | 2 |
If top open is needed at side, the frame pool is a good choice as large fracking tank.
Size ranges from 2500gal(10,000L) to 2,500,000gal(1,000,000L), besides standard sizes, the flexible water containment can be customized.
| CAPACITY | APPROXIMATE DIMENSIONS (DIAMETER*HEIGHT) |
THICKNESS OF MATERIAL |
NOM.WT | NOM.CUBE | |||||
| GAL. | LITERS | FEET | METERS | INCH | MM | LBS. | KGS. | FT3 | M3 |
| 2,500 | 10,000 | 11.1*3.9 | 3.4*1.2 | 0.027 | 0.7 | 182.9 | 83 | 14.8 | 0.42 |
| 3750 | 15,000 | 13.1*3.9 | 4*1.2 | 0.027 | 0.7 | 209.4 | 95 | 18 | 0.51 |
| 5,000 | 20,000 | 15*3.9 | 4.6*1.2 | 0.027 | 0.7 | 235.8 | 107 | 21.1 | 0.6 |
| 7500 | 30,000 | 18.7*3.9 | 5.7*1.2 | 0.035 | 0.9 | 341.7 | 155 | 22.2 | 0.63 |
| 10,000 | 40,000 | 21.3*3.9 | 6.5*1.2 | 0.035 | 0.9 | 396.8 | 180 | 25.7 | 0.73 |

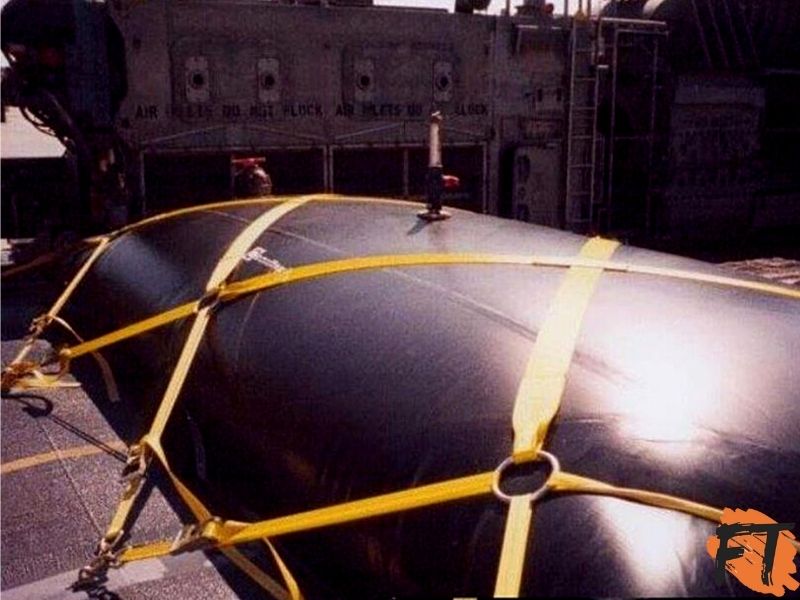

Bladder Tanks use in various places, for different purpose, the fabric materials will be different. For most usage, the non-drinking water storage, the regualr material PVC is a good choice; but for drinking water, the mateial should be food-grade, we use the TPU which meets the FDA to provide safe sources.
Please check the common usage of materials below:
| FABRIC MATERIAL |
THICKNESS | COMMON USAGE |
| UNIT: MM | ||
| PVC | 0.7-0.9-1.0-1.2-1.5-2.0 | Non-Drinking Water Storage, Chemical Liquid Storage |
| POLYESTER TPU | 0.7-0.9-1.0-1.2-1.5-2.0 | Fuel, Gasoline, Petrol, Jet Fuel, Lube Oil Storage, Transportation |
| POLYETHER TPU | 0.7-0.9-1.0-1.2-1.5-2.0 | Potable Water Storage Supply |
| 6P FREE PVC | 0.7-0.9-1.0-1.2-1.5-2.0 | Aquaculture Tanks, Fish Breeding Tanks, Shrimp Farming Ponds |
The common specification of our fabric mateials, including PVC and TPU.
Flixtank provides tanks for water(including drinking), fuel, chemical storage in residential, industrial, agricultural sites.
For most applications, the standard fittings are enough: M flange, Camlock, Ball Valve, A/F Fitting, Spare Kits.
In order to connect to the pipe directly, we also recommend the add a C Fitting(extra pay).
And other accessries(pay extra): Ground Sheet; Sun-shed Cover; Spill Berm(Liner)
Common sizes: 3/4inch, 1/2inch, 1inch, 1-1/2inch, 2inch, 3inch, 4inch, 6inch.
other sizes can be customized.
For most water storage tanks, we use the fittings of UPVC(for water), Stainless Steel(for fuel), Aluminum(for fuel), brass(for fuel).
Type, Sizes, Materials can be customized according to the requirements.
In different applications, some accessories may need, we can supply some accessories for usages below, more requirements, please discuss with us.
Aquaculture may also need: water pump, oxygen pump, filtering system, UV light.
Water supply may also need: water pump, hose.
Rainwater may also need: filter net, water pump, leaf eater.
