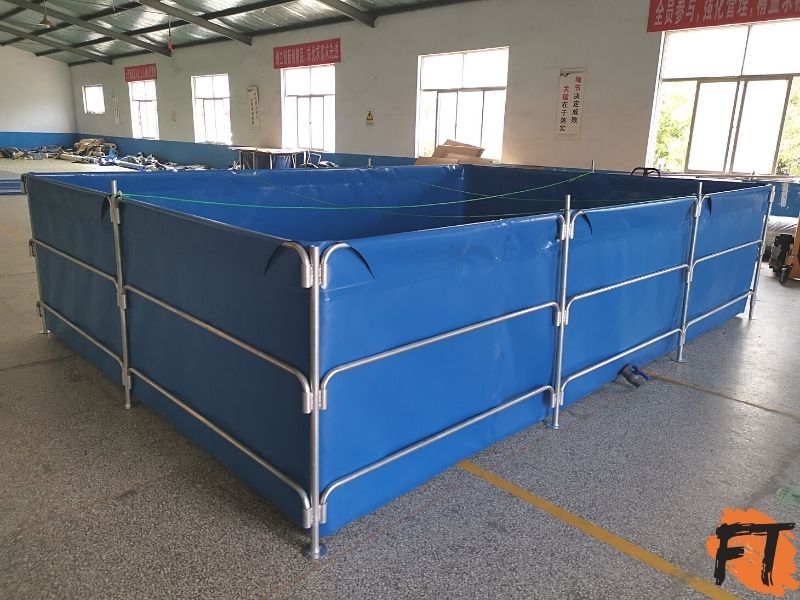

fish farming tanks-wire mesh tank-flexibility

foldable

20,000L

15,000L

20,000L

4000L

INDOOR&OUTDOOR AQUACULTURE FISH FARMING TANK

Flexible Fish Farming Tank(Aquaculture Tank) designs for land-based aquaculture, fish farming, shrimp farming. Easy to Use: Connect, Filling, Done.

Fish Holding Tank widely uses in fish hatchery, fish nursery, fish farming, fish holding process, the complete RAS.

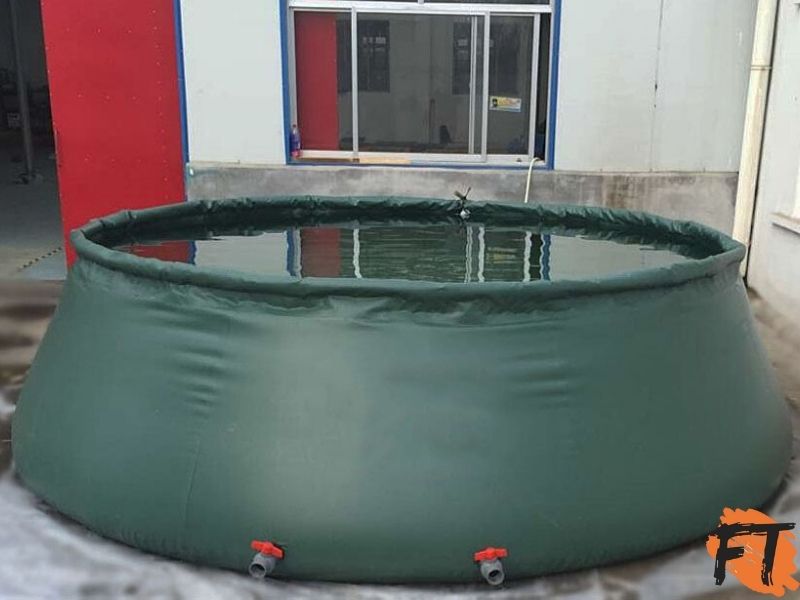

Collapsible Fish Rearing Tank, using Heavy Duty sheet, more flexibility, lighter, stronger; eg: 10m3 tank only 0.33m3 packing.

Each Aquaculture Tank go through weld seams tested and installation before shipment, Safe, Reliable are our purpose.

Request a quote

WHAT IS LAND-BASED AQUACULTURE

Aquaculture often refers to the RAS-recycling aquaculture system, it’s a type of man controlled system to breed fish/shrimp in a scientific way. When we want to make it clear, this question should be explained in 2 ways:

land-based means onshore, it’s totally different to the cage farming, the water will be stored in tank and process the farming. It can be operated indoor or outdoor.
aquaculture, as we said, it’s a scientific way of farming, using the limited space, icreasing production rate, reducing the operational costs, including: solid waste removal, ammonia removal, CO2 removal, and oxygenation.

The land aquaculture systems can be used to run seawater farming and saltwater farming, no matter which type you need, we can provide the suitable fish farming tanks to you. Please contact us to discuss more.

WHY FLEXIBLE FISH FARMING TANK

There have many optional of aquaculture tanks, but flexible PVC fish breeding tank is a good choice, and we really mean it.

Safety

The fish rearing tank uses the heavy duty PVC fabric material, UV-resistant, puncture resistant, rustproof, and using in properly maintained, the lifespan can be over 10 years. And 6P free fish breeding fabric material used, safe to fish/shrimp, safe to human.

Good Design

The traditional biofloc(RAS) tank is usually the circle tank with a central drain, that’s all. Flixtank makes the floor slope for the tanks. This design improves the utilization of the water, using the gravity and water flow in the culture tank to clean the rearing tank.

Small Package

The body of the biofloc tank is flexible(but durable), and the support of the tank is frames, can be folded and packed in small size. Which means, a big size fish farming tank, the package can be small when emtpy, also means, for international or local shipment, the shipping cost can reduce a lot. For example, the 10,000L breeding tank, the packing is 0.33m3; a 20GP container can load 90 units of tanks.

Custom Available

Comparing with the rigid tanks(steel tank or rigid plastic tanks), we can provide the fish farming tank with any sizes or dimensions you need. As we’re factory, we can produce any sizes to you, even for 1 tank.

Contact Us

FEATURES OF AQUACULTURE

No Limited on Space

no matter big or small place, the fish farming tanks fit.

Better Water Quality, Less Fish Death

microbial balance, water recycling, better environment to fish farming.

Increasing Culture Density

in RAS, this is the most scientific way of breeding.

Increasing Production Rage, Less Cost

fish breeding in less time period, more automatic.

FEATURES OF FLIXTANK ABOVE GROUND POOL

Quick Assemble: connect, cover, done.

Small Package: can be packed in a small package when it’s empty.

Safety: heavy duty fabric material used, flexible, but robust; and 6P free material for fish breeding tank, safe to fish, safe to human.

Economical: over half to the stainless steel tank.

No Limit: almost no limited on the working site.

Lower Shipping Cost: can be packed in a small carton for shipment..

Easy Mainteinance: flow from “in” to “out”.

Custom: provide custom services even for 1 tank, including the mateiral, dimension, fittings.

Standard Sizes of Fish Farming Tanks

Size ranges from 125gal(500L) to 250,000gal(1,000,000L), besides standard sizes, the flexible fish breeding tank be customized.

CAPACITY		APPROXIMATE DIMENSIONS (DIAMETER*HEIGHT)		THICKNESS OF MATERIAL		NOM.WT		NOM.CUBE
GAL.	LITERS	FEET	METERS	INCH	MM	LBS.	KGS.	FT3	M3
125	500	3.2*2.2	1*0.7	0.027	0.7	33	15	4.5	0.13
250	1000	4.4*2.2	1.4*0.7	0.027	0.7	46.2	21	5.2	0.15
750	3000	7.8*2.2	2.4*0.7	0.027	0.7	77.1	35	5.6	0.16
1250	5000	9.8*2.2	3*0.7	0.027	0.7	121.2	55	7.4	0.21
2,500	10,000	11.1*3.9	3.4*1.2	0.027	0.7	182.9	83	14.8	0.42
3750	15,000	13.1*3.9	4*1.2	0.027	0.7	209.4	95	18	0.51
5,000	20,000	15*3.9	4.6*1.2	0.027	0.7	235.8	107	21.1	0.6
7500	30,000	18.7*3.9	5.7*1.2	0.035	0.9	341.7	155	22.2	0.63
10,000	40,000	21.3*3.9	6.5*1.2	0.035	0.9	396.8	180	25.7	0.73

more sizes can be customized, according to the requirements, contact us to custom.

Fabric Materials Choice

Bladder Tanks use in various places, for different purpose, the fabric materials will be different. For most usage, the non-drinking water storage, the regualr material PVC is a good choice; but for drinking water, the mateial should be food-grade, we use the TPU which meets the FDA to provide safe sources.

Please check the common usage of materials below:

FABRIC MATERIAL	THICKNESS	COMMON USAGE
FABRIC MATERIAL	UNIT: MM	COMMON USAGE
PVC	0.7-0.9-1.0-1.2-1.5-2.0	Non-Drinking Water Storage, Chemical Liquid Storage
POLYESTER TPU	0.7-0.9-1.0-1.2-1.5-2.0	Fuel, Gasoline, Petrol, Jet Fuel, Lube Oil Storage, Transportation
POLYETHER TPU	0.7-0.9-1.0-1.2-1.5-2.0	Potable Water Storage Supply
6P FREE PVC	0.7-0.9-1.0-1.2-1.5-2.0	Aquaculture Tanks, Fish Breeding Tanks, Shrimp Farming Ponds

Specification

The common specification of our fabric mateials, including PVC and TPU.

-40~90 Degrees Working Temperature
UV-Resistance
10 Years Contact Time
Rustproof

STANDARD FITTINGS

Flixtank provides tanks for water(including drinking), fuel, chemical storage in residential, industrial, agricultural sites.

For most applications, the standard fittings are enough: M flange, Camlock, Ball Valve, A/F Fitting, Spare Kits.

In order to connect to the pipe directly, we also recommend the add a C Fitting(extra pay).

And other accessries(pay extra): Ground Sheet; Sun-shed Cover; Spill Berm(Liner)

SIZE OF FITTINGS

Common sizes: 3/4inch, 1/2inch, 1inch, 1-1/2inch, 2inch, 3inch, 4inch, 6inch.

other sizes can be customized.

MATERIALS OF FITTINGS

For most water storage tanks, we use the fittings of UPVC(for water), Stainless Steel(for fuel), Aluminum(for fuel), brass(for fuel).

CUSTOM FITTINGS

Type, Sizes, Materials can be customized according to the requirements.

Learn More

ACCESSORIES

In different applications, some accessories may need, we can supply some accessories for usages below, more requirements, please discuss with us.

Aquaculture may also need: water pump, oxygen pump, filtering system, UV light.

Water supply may also need: water pump, hose.

Rainwater may also need: filter net, water pump, leaf eater.

Learn More
