FRAME POOL(AQUACULTURE TANK)

80,000L

frame pool-round frame tank-wire mesh tank-30,000L

20,000L

2800L

30,000L

20,000L 30,000L

frame pool-round frame tank-wire mesh tank-folding

foldable

30,000L

20,000L

25,000L

PORTABLE FRAME POOL/ TOP OPEN CONTAINMENT

Collapsible Frame Pool(Plastic PVC Pool) designs for short or long term water storage and transportation; Top Open Tank, easy to filling.

Flexible Plastic Stock Tank widely uses in storage of Potable Water, Non-potable water(Firefighting, Industrial, Gray Water, Aquaculture, Rainwater, Military). Perfect choice water containment indoor&outdoor.

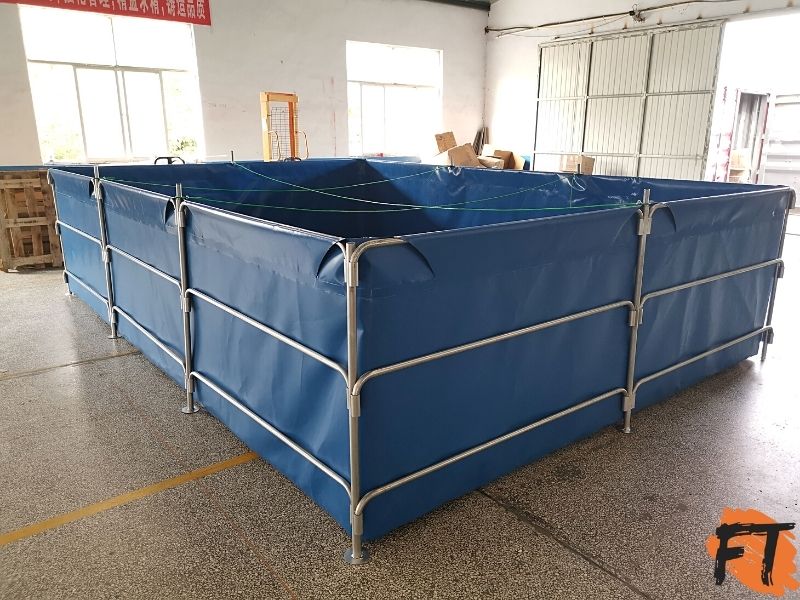

Frame Pool consist by rigid steel frame and PVC bag. Using Heavy Duty fabric sheet, and galvanized steel, more flexibility, lighter, stronger; eg: 10m3 tank only 0.33m3 packing.

Each Portable Stock Pool go through installation tested before shipment, Safe, Reliable are our purpose.

Request a quote

MULTI-PURPOSE FRAME POOL

Frame Pool(Above Ground Pool) uses widely indoor and outdoor: quick response water supply, including the potable drinking water; construction wastewater storage; oil spill containment; rainwater collection; aquaculture farming tanks; firefighting quick assemble tank. Then the frame poolcan be used in Industrial, Agriculture for water storage.

Different working places, differnt requirements, we can do the custom pools.

COMMON FRAME POOL TANK USES

Aquaculture/Aquaponic Tank.
Drinking/ Non-Drinking Water Storage.
Wastewater Treatment.
Water Supply in Construction Sites.
Firefighting Water Storage.
Rainwater Collection.
Drought Area Water Supply.
Emergency/Disaster Water Relief.
Safely Load Any Effluence: wine, cooking oil, molasses, wastewater, diesel fuel, jet fuel, and more!

BENEFIT OF A FRAME POOL

When you consider a top open tank for liquid storage, portable frame pool is a good choice.

Strong: The collapsible PVC pool consists by steel frame and pvc liner. The body of the stock tank uses heavy duty multi-layer sheet, the corners and edges are reinforced for longer and durable performance, all process follows the military standard. The frame of the stock pool is galvanized steel structure.

Safe: For drinking water containment, the safety is the most important part, flixtank water bladder tank uses TPU mateiral(CLEAN and SAINTARY) which meets the FDA; for common water storage, collapsible water storage tank provides fast and economical.

Easy Use: No tools needed, it’s snap, connect, fill, done.

Small Package: Can you image 10m3 loading capacity tank, the packing volume is only 0.33m3? the small package can help you to save a lot on shipment.

So steel frame pool is a type of top open water stock tank, but more flexible, more advanced.

Contact Us

FRAME POOL APPLICATIONS

Aquaculture/ Aquaponic Tank

Rainwater Collection and Storage

Fish Showcase

Pool Solution Water Storage

Firefightiing Water Supply

Wastewater Storage for Construction

Oil Spill Cleanup

Frac Tank in Industrial Site

FEATURES OF ABOVE GROUND POOL

Quick Assemble: connect, cover, done.

Small Package: can be packed in a small package when it’s empty.

Good Look: colors available.

Economical: over half to the stainless steel tank.

No Limit: almost no limited on the working site.

Lower Shipping Cost: can be packed in a small carton for shipment.

Load More: a 20GP container can load bulk tanks.

Easy Mainteinance: flow from “in” to “out”.

Custom: provide custom services even for 1 tank, including the mateiral, dimension, fittings.

Standard Sizes of Round Pool

Size ranges from 70gal(200L) to 260,000gal(1,000,000L), besides standard sizes, the frame round pool can be customized.

CAPACITY		APPROXIMATE DIMENSIONS (DIAMETER*HEIGHT)		THICKNESS OF MATERIAL		NOM.WT		NOM.CUBE
GAL.	LITERS	FEET	METERS	INCH	MM	LBS.	KGS.	FT3	M3
125	500	3.2*2.2	1*0.7	0.027	0.7	33	15	4.5	0.13
250	1000	4.4*2.2	1.4*0.7	0.027	0.7	46.2	21	5.2	0.15
750	3000	7.8*2.2	2.4*0.7	0.027	0.7	77.1	35	5.6	0.16
1250	5000	9.8*2.2	3*0.7	0.027	0.7	121.2	55	7.4	0.21
2,500	10,000	11.1*3.9	3.4*1.2	0.027	0.7	182.9	83	14.8	0.42
3750	15,000	13.1*3.9	4*1.2	0.027	0.7	209.4	95	18	0.51
5,000	20,000	15*3.9	4.6*1.2	0.027	0.7	235.8	107	21.1	0.6
7500	30,000	18.7*3.9	5.7*1.2	0.035	0.9	341.7	155	22.2	0.63
10,000	40,000	21.3*3.9	6.5*1.2	0.035	0.9	396.8	180	25.7	0.73

more sizes can be customized, according to the requirements, contact us to custom.

Standard Sizes of Square Pool

Size ranges from 250gal(1000L) to 5,000gal(20,000L), besides standard sizes, the square frame stock tank can be customized.

CAPACITY		APPROXIMATE DIMENSIONS (LENGTHWIDTHHEIGHT)		THICKNESS OF MATERIAL		NOM.WT		NOM.CUBE
GAL.	LITERS	FEET	METERS	INCH	MM	LBS.	KGS.	FT3	M3
250	1000	3.23.23.2	111	0.027	0.7	46.2	21	5.2	0.15
1250	5000	8.26.43.2	2.521	0.027	0.7	121.2	55	7.4	0.21
2,500	10,000	13.17.23.9	42.21.2	0.027	0.7	182.9	83	14.8	0.42
5,000	20,000	16.411.43.9	53.51.2	0.027	0.7	235.8	107	21.1	0.6
10,000	40,000	26.213.13.9	841.3	0.035	0.9	396.8	180	25.7	0.73

more sizes can be customized, according to the requirements, contact us to custom.

Fabric Materials Choice

Bladder Tanks use in various places, for different purpose, the fabric materials will be different. For most usage, the non-drinking water storage, the regualr material PVC is a good choice; but for drinking water, the mateial should be food-grade, we use the TPU which meets the FDA to provide safe sources.

Please check the common usage of materials below:

FABRIC MATERIAL	THICKNESS	COMMON USAGE
FABRIC MATERIAL	UNIT: MM	COMMON USAGE
PVC	0.7-0.9-1.0-1.2-1.5-2.0	Non-Drinking Water Storage, Chemical Liquid Storage
POLYESTER TPU	0.7-0.9-1.0-1.2-1.5-2.0	Fuel, Gasoline, Petrol, Jet Fuel, Lube Oil Storage, Transportation
POLYETHER TPU	0.7-0.9-1.0-1.2-1.5-2.0	Potable Water Storage Supply
6P FREE PVC	0.7-0.9-1.0-1.2-1.5-2.0	Aquaculture Tanks, Fish Breeding Tanks, Shrimp Farming Ponds

Specification

The common specification of our fabric mateials, including PVC and TPU.

-40~90 Degrees Working Temperature
UV-Resistance
10 Years Contact Time

STANDARD FITTINGS

Flixtank provides tanks for water(including drinking), fuel, chemical storage in residential, industrial, agricultural sites.

For most applications, the standard fittings are enough: M flange, Camlock, Ball Valve, A/F Fitting, Spare Kits.

In order to connect to the pipe directly, we also recommend the add a C Fitting(extra pay).

And other accessries(pay extra): Ground Sheet; Sun-shed Cover; Spill Berm(Liner)

SIZE OF FITTINGS

Common sizes: 3/4inch, 1/2inch, 1inch, 1-1/2inch, 2inch, 3inch, 4inch, 6inch.

other sizes can be customized.

MATERIALS OF FITTINGS

For most water storage tanks, we use the fittings of UPVC(for water), Stainless Steel(for fuel), Aluminum(for fuel), brass(for fuel).

CUSTOM FITTINGS

Type, Sizes, Materials can be customized according to the requirements.

Learn More

ACCESSORIES

In different applications, some accessories may need, we can supply some accessories for usages below, more requirements, please discuss with us.

Aquaculture may also need: water pump, oxygen pump, filtering system, UV light.

Water supply may also need: water pump, hose.

Rainwater may also need: filter net, water pump, leaf eater.

Learn More

FEATURES

FRAME POOL APPLICATIONS

Aquaculture/ Aquaponic Tank

Rainwater Collection and Storage

Fish Showcase

Pool Solution Water Storage

Firefightiing Water Supply

Wastewater Storage for Construction

Oil Spill Cleanup

Frac Tank in Industrial Site

FEATURES OF ABOVE GROUND POOL

Quick Assemble: connect, cover, done.

Small Package: can be packed in a small package when it’s empty.

Good Look: colors available.

Economical: over half to the stainless steel tank.

No Limit: almost no limited on the working site.

Lower Shipping Cost: can be packed in a small carton for shipment.

Load More: a 20GP container can load bulk tanks.

Easy Mainteinance: flow from “in” to “out”.

Custom: provide custom services even for 1 tank, including the mateiral, dimension, fittings.

PARAMETER-ROUND

Standard Sizes of Round Pool

Size ranges from 70gal(200L) to 260,000gal(1,000,000L), besides standard sizes, the frame round pool can be customized.

CAPACITY		APPROXIMATE DIMENSIONS (DIAMETER*HEIGHT)		THICKNESS OF MATERIAL		NOM.WT		NOM.CUBE
GAL.	LITERS	FEET	METERS	INCH	MM	LBS.	KGS.	FT3	M3
125	500	3.2*2.2	1*0.7	0.027	0.7	33	15	4.5	0.13
250	1000	4.4*2.2	1.4*0.7	0.027	0.7	46.2	21	5.2	0.15
750	3000	7.8*2.2	2.4*0.7	0.027	0.7	77.1	35	5.6	0.16
1250	5000	9.8*2.2	3*0.7	0.027	0.7	121.2	55	7.4	0.21
2,500	10,000	11.1*3.9	3.4*1.2	0.027	0.7	182.9	83	14.8	0.42
3750	15,000	13.1*3.9	4*1.2	0.027	0.7	209.4	95	18	0.51
5,000	20,000	15*3.9	4.6*1.2	0.027	0.7	235.8	107	21.1	0.6
7500	30,000	18.7*3.9	5.7*1.2	0.035	0.9	341.7	155	22.2	0.63
10,000	40,000	21.3*3.9	6.5*1.2	0.035	0.9	396.8	180	25.7	0.73

more sizes can be customized, according to the requirements, contact us to custom.

PARAMETER-SQUARE

Standard Sizes of Square Pool

Size ranges from 250gal(1000L) to 5,000gal(20,000L), besides standard sizes, the square frame stock tank can be customized.

CAPACITY		APPROXIMATE DIMENSIONS (LENGTHWIDTHHEIGHT)		THICKNESS OF MATERIAL		NOM.WT		NOM.CUBE
GAL.	LITERS	FEET	METERS	INCH	MM	LBS.	KGS.	FT3	M3
250	1000	3.23.23.2	111	0.027	0.7	46.2	21	5.2	0.15
1250	5000	8.26.43.2	2.521	0.027	0.7	121.2	55	7.4	0.21
2,500	10,000	13.17.23.9	42.21.2	0.027	0.7	182.9	83	14.8	0.42
5,000	20,000	16.411.43.9	53.51.2	0.027	0.7	235.8	107	21.1	0.6
10,000	40,000	26.213.13.9	841.3	0.035	0.9	396.8	180	25.7	0.73

more sizes can be customized, according to the requirements, contact us to custom.

TECHNICAL INFO

Fabric Materials Choice

Please check the common usage of materials below:

FABRIC MATERIAL	THICKNESS	COMMON USAGE
FABRIC MATERIAL	UNIT: MM	COMMON USAGE
PVC	0.7-0.9-1.0-1.2-1.5-2.0	Non-Drinking Water Storage, Chemical Liquid Storage
POLYESTER TPU	0.7-0.9-1.0-1.2-1.5-2.0	Fuel, Gasoline, Petrol, Jet Fuel, Lube Oil Storage, Transportation
POLYETHER TPU	0.7-0.9-1.0-1.2-1.5-2.0	Potable Water Storage Supply
6P FREE PVC	0.7-0.9-1.0-1.2-1.5-2.0	Aquaculture Tanks, Fish Breeding Tanks, Shrimp Farming Ponds

Specification

The common specification of our fabric mateials, including PVC and TPU.

-40~90 Degrees Working Temperature
UV-Resistance
10 Years Contact Time

ACCESSORIES

STANDARD FITTINGS

Flixtank provides tanks for water(including drinking), fuel, chemical storage in residential, industrial, agricultural sites.

For most applications, the standard fittings are enough: M flange, Camlock, Ball Valve, A/F Fitting, Spare Kits.

In order to connect to the pipe directly, we also recommend the add a C Fitting(extra pay).

And other accessries(pay extra): Ground Sheet; Sun-shed Cover; Spill Berm(Liner)

SIZE OF FITTINGS

Common sizes: 3/4inch, 1/2inch, 1inch, 1-1/2inch, 2inch, 3inch, 4inch, 6inch.

other sizes can be customized.

MATERIALS OF FITTINGS

For most water storage tanks, we use the fittings of UPVC(for water), Stainless Steel(for fuel), Aluminum(for fuel), brass(for fuel).

CUSTOM FITTINGS

Type, Sizes, Materials can be customized according to the requirements.

Learn More

ACCESSORIES

In different applications, some accessories may need, we can supply some accessories for usages below, more requirements, please discuss with us.

Aquaculture may also need: water pump, oxygen pump, filtering system, UV light.

Water supply may also need: water pump, hose.

Rainwater may also need: filter net, water pump, leaf eater.

Learn More
